PRODUCT FUNCTION
-
Early warning and alarm
Continuously monitor the status of the power system. Once a fault or anomaly is detected, an alarm w
-
Remote control
Supports remote control. Users can access the platform system at any time through mobile devices or
-
Electric power monitoring
Real-time collection and analysis of key parameters of the power grid (such as voltage and power), a
-
Flexible connection with third parties
Support third-party integration; Support remote and batch management of MQTT addresses
-
Remote control
Supports remote control of opening and closing, as well as timed and policy control
-
Electric energy metering
The bidirectional electric energy metering accuracy is grade 1 and supports fee control metering
Performance Parameter
| Model | CMU D 4G |
| Product series | CMU D |
| Communication characteristics | |
| Network Protocol | MQTT |
| Network type | 4G Cat 1 |
| Downlink interface protocol | Modbus-RTU |
| Downlink interface standard | RS485 |
| Electrical characteristics | |
| Input voltage | AC 220V@50-60Hz |
| Working current | ~300mA@9V |
| Mechanical properties | |
| Processor | Cortex-R5 |
| Main frequency | 624Mhz |
| Other features | |
| Working environment temperature | -20℃~+70℃ |
| Working relative humidity | ≤95%(No condensation) |
| Standby power consumption | 0.2W |
| Product size | 90*66*18mm |
| Installation placeholder | 1P |
| Installation method | Standard guide rail installation |
Product Advantages
-
-
Built-in AI model
Local edge computing can be carried out to enhance data processing capabilities
-
-
Diverse data upload modes
Supports variable data transmission and fixed-cycle upload modes
-
-
Support local data storage
Supports local data storage and latency processing, and is applicable in scenarios with high privacy
-
-
Save project costs
The intelligent gateway can carry dozens of networked devices at a time, which can save project cost
-
-
Reliable data integrity
The device will not lose data due to network disconnection, ensuring the integrity of the data and t
-
-
Automatic resume from breakpoint
Supports automatic reconnection after network disconnection, ensuring more reliable data transmissio
Application Scenarios
-
Community
Monitoring of electric bike charging at homeElectrical fire hazard monitoringFire emergency intermodal monitoring -
School
Supervision of illegal electrical appliances in dormitoriesManagement of energy-saving electricity usage in public areasFire emergency protection in colleges and universities -
Commercial
Monitoring of safety hazards in commercial electricity usageRemote merchant electricity usage managementEnergy conservation in public areas of shopping malls -
Logistics
Energy conservation management for warehouse consumptionSafety charging monitoring for express delivery electric vehiclesCircuit aging safety warning -
Park
Energy conservation management in public areas of the parkEfficient and rapid power restoration and closingSafety monitoring of potential hazards -
Shop
Store electrical safety monitoringIdentification of high-power malignant loadsFire prevention and early warning management
Related Cases

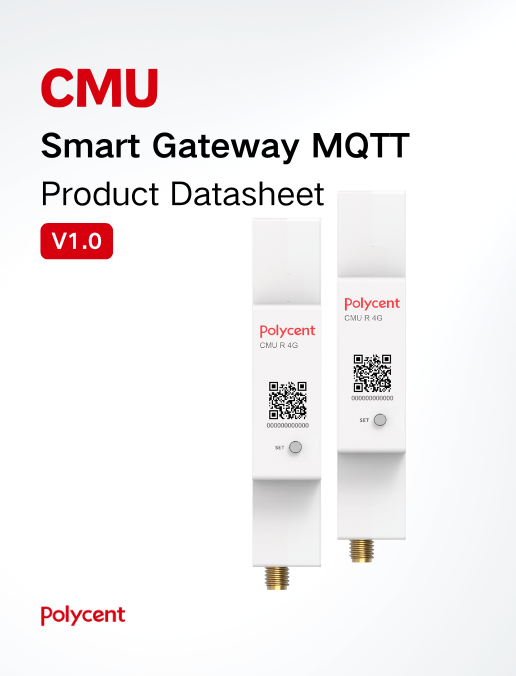

Data Download
